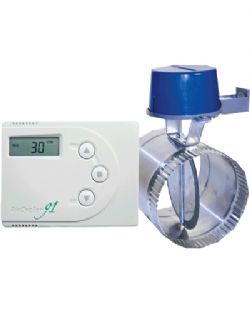

AirCycler g1 System Controller/Furnace Fan Timer and 6 Inch Motorized Damper for a Supply Only whole house supply ventilation solution - White
Catalog #: ACY-AC-G1D-06
The AirCycler AC-G1D-06 is a Furnace Fan Timer and Ventilation Controller with an output for operating the paired 6" motorized fresh air damper. The system provides whole house SUPPLY ventilation through central furnace fan integration.
| Features & Benefits | ||
|
||
| Product Details | ||
|
The AirCycler g1 Furnace Fan Timer is a smart, simple solution for achieving
whole house supply ventilation. Both energy efficient and cost effective, the
AirCycler g1 integrates with the existing central furnace fan and ductwork to
deliver fresh air throughout the home at the same time that the home is heating
and cooling. By working in conjunction with the already operating HVAC
system, the AirCycler g1 results in significant energy savings over other supply
ventilation solutions.
During installation, ventilation requirements are set by entering the measured
airflow and airflow required by code (Calculated Flow Setup), or by entering
the desired amount of ventilation per hour (Calculated Time Setup). The
AirCycler g1 is integrated with the central furnaces fan so that any time the
central fan turns on to provide heating or cooling, the AirCycler g1 opens a
motorized fresh air damper. The air is ducted to the return side of the furnaces
allowing it to flow through the existing filter and then heated or cooled by the
central unit. The fresh air is then distributed uniformly throughout the home
through the existing ductwork. Once the ventilation requirements are met, the
fresh air damper is closed to prevent over-ventilation.
Through a patented algorithm, the AirCycler g1 logs the ventilation time
elapsed during heating and cooling cycles and compares it with the total
ventilation requirements set. The AirCycler g1 then calculates whether or not
hourly requirements have been met. If not, the AirCycler g1 will power on
the central fan and open the motorized damper until reaching the required
ventilation. By utilizing the already operating furnace fan and bringing in
fresh air during heating and cooling calls, and by not operating the furnace
fan continuously the AirCycler g1 system offers significant energy savings
over other supply ventilation solutions.
Available with the AirCycler g1 are our TempGuard Temperature Sensors
for monitoring outside air temperature - hot or cold during ventilation.
As Well as the Rangehood Relief Switch for solving depressurization issues. |
||
| Support Videos | ||
| Documentation & Links | ||
| Sales & Promotion | Installation & Setup | |
| Training Guide | ||
| Calculated Time Quick Setup | ||
| Calculated Flow Quick Setup | ||
| Rating Software Procedure | ||
| TempGuard Wiring | ||
| Special Wiring Options | ||
| Product ID | ||
| Mfg Part#: | AirCycler AC-G2 | |
| Series: | AirCycler g2 | |
| Product Group: | Fresh Air Systems | |
| Product Type: | Hybrid/Balanced Supply / Exhaust | |
| Specifications | ||
| Control Type: | Furnace Mount | |
| Switch Type: | Controller | |
| Color: | White | |
| Country of Origin: | China | |
| Approx. Annual Energy System Cost - 2500 Sq. Ft. 4 Bed @ 12 cents Kwh | ||
| Older Construction: | Low $25 - High $50 | |
| Newer Construction: | Low $85 - High $115 | |
| Measurements | ||
| Unit HxWxD: | 3-1/2 x 4-1/2 x 1-1/2 Inches | |
| Unit Weight: | .38 lbs | |
| Package Dimensions: | 4 x 5 x 2 Inch | |
| Electrical Specifications | ||
| Voltage: | 24V 60Hz (30V Max) | |
| Current Draw: | 0.07 Amps | |
| Warranty | ||
| Warranty Unit: | 1-Year | |
| Ratings and Standards | ||
| ASHRAE: | 62.2 Compliant when used with compliant fan | |
