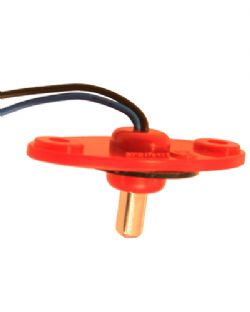

AirCycler ACTG-H01 TempGuard Hot Temperature Sensor for disabling fresh air motorized dampers Above 95 degrees F and On 4 degrees lower - Red
Catalog #: ACY-ACTG-H01
AirCycler ACTG-H01 TempGuard Hot Temperature Sensor for disabling fresh air motorized dampers in extreme temperatures. With extreme outside temperatures, natural ventilation can increase causing homes to require less controlled mechanical ventilation. This sensor will disable the damper when temperatures are hotter than 95 Degrees F providing increased energy savings.
| Features & Benefits | ||
|
||
| Product Details | |
|
TempGuard HotTemperature Sensor is a simple solution for preventing over-ventilation in extreme hot climates. With extreme outside temperatures, natural ventilation can increase and cause homes to require less mechanical ventilation. When used in conjunction with a whole house mechanical ventilation system, TempGuard can increase energy savings and comfort.
|
|
| Documentation & Links | |
| Sales & Promotion | Installation & Setup |
| Damper Brochure | TempGuard Wiring |
| TempGuard Brochure |
| Product ID | |
| Mfg Part#: | AirCycler ACTG-H01 |
| Series: | AirCycler g2 |
| Product Group: | Fresh Air Systems |
| Product Type: | Hybrid/Balanced Supply / Exhaust |
| Specifications | |
| Control Type: | Supply Duct Mount |
| Switch Type: | Controller |
| Color: | Red |
| Country of Origin: | China |
| Temperature Range | |
| OFF: | 95 Degree F +/- 5 Degrees |
| ON: | 4 Degrees F lower |
| Measurements | |
| Unit HxWxD: | |
| Unit Weight: | |
| Package Dimensions: | |
| Electrical Specifications | |
| Voltage: | 24V 60Hz |
| Current Draw: | 2 Amps |
| Warranty | |
| Warranty Unit: | 1-Year |
