AirCycler GarageVent Garage Ventilation Controller w/Fan Delay and Temperature Setting


Catalog #: ACY-GVC-01
GarageVent Garage ventilation Controller w/Fan Delay and Temperature Setting. Attached garages are an obvious source of airborne contaminants. Without proper ventilation, toxic fumes , such as carbon monoxide, and unhealthy vapors from cars and lawn and garden chemicals can easily enter the home. Without ventilation or with insufficient ventilation systems, a garage can be extremely hazardous. The GarageVent is a simple, flexible and economical solution for proper garage ventilation.
Price: $129.95
Your Price: $118.18

* Qty:
* Denotes Required Fields.
Features & Benefits
  • Meets building ventilation codes
  • Helps meet IMC 403.4, LEED for homes, and Indoor Air Plus standards
  • Can also be used as a temperature controller for garage or attic
  • Mounts in a standard single-gang wall box
  • Works with unlimited number of doors
  • Can control any fan or motor up to 400 watts
Product Details
The GarageVent is a garage ventilation controller with exhaust fan delay and temperature settings.
This product provides exhaust ventilation.

The GarageVent controls ventilation based on a pre-set delay time and/or a pre-set temperature.
When a door is opened, the GarageVent turns on the exhaust fan. The fan will continue to run after the door is closed until the pre-set delay time is reached. The GarageVent can also be programmed to turn on the exhaust fan when a pre-set temperature has been reached.

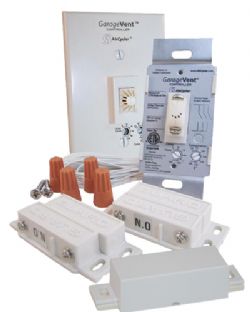

An unlimited number of doors can be operated on the system. The Garage Vent comes with two door switches; additional door switches can be purchased separately.
Documentation & Links
Brochure PDF  Installation PDF


 Product ID
Mfg Part#: AirCycler GVC-01
Series: GarageVent
Product Group: Fresh Air Systems
 Product Type: Exhaust Only Solutions
Specifications
Control Type: Wall Box
Switch Type: Relay
Color: White
Country of Origin: Taiwan/China
Measurements
Unit HxWxD:
Unit Weight:
Package Dimensions:
Electrical Specifications
Voltage: 120V 50/60Hz
Max Fan Watts: 400 Watts (Red Wire)
Max Amps:  1.25A inductive, 3.75A Tungsten
Warranty
Warranty Unit: 1-Year
Ratings and Standards
cETLus; Yes
UL: Conforms to UL Std 91 7
Intertek: 3191003
CSA:
Certified to CSA Std C22.2 No. 117-92
