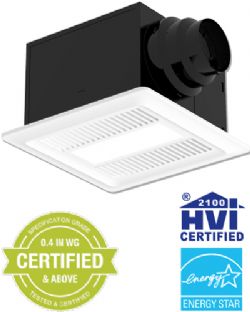

Greenheck MASTERSpec SP-AP0511WL High-Performance, 2-Speed, High Profile, Bathroom / Whole House Continuous Ventilation Exhaust Fan w/ Light, 30-110 CFM, Constant CFM, EC Motor


Catalog #: MST-HP0511WL
UPC #: 638029417815
30-110 CFM High Performance, 2-Speed, MASTERSpec Bathroom / Whole House Continuous Ventilation Exhaust Fan w/Light, Constant CFM, CFM Speed Selector, Virtually Silent EC Motor, Precision Air Flow Selector, ASHRAE 62.2 Compliant, 115V
Price: $339.75
Your Price: $310.00
BuyIAQ Special: $279.00

* Qty:
* Denotes Required Fields.

Comparable in Features but Outperforms Competitors:
Panasonic FV-0511VKL2, FV-0511VKSL2

 Features & Benefits
  • Virtually Silent EC motor with 3 high speeds (50-80-110 CFM)
  • LED Light Grille, 10 Watt Dimmable, 50,000 Hour Life
  • 3,000 Kelvin Warm White Color Temperature LED
  • Built-in 0 to 60 minute time delay, in field adjustable
  • Standard 2-speed (Whole House ventilation)
  • ENERGY STAR rated
  • Industry-leading low sound levels
  • Constant CFM technology with Multi-Speed setting
  • Air Trimming feature allowing for precise airflow
  • Plug and play sensors available
  • Provides continuous or intermittent ventilation
  • Extremely low sound levels up to 0.625 in. wg.
  • Universal 4", 5", 6" duct connector
  • Quick-mount bracket enables installation from below
  • New construction and retrofits installations are quick and easy
  • Integral back-draft damper
 EC Motor Advantage
Greenheck's Electronically Commutated (EC) motor combines motor technology, controllability and energy-efficiency into one single low maintenance unit and is the industry's first fully controllable motor. The EC motor operates on AC power that is converted to DC - providing more efficient motor operation as compared to an AC operation.

The controllability of the EC motor allows communication compatibility with a variable volume system. This allows speed adjustment of the motor to meet the needs of the system to exhaust air as needed and reduce over exhausting
conditioned air.
Documentation Videos
Product Brochure Installation Video
Instruction Manual The Certified Airflow Difference
Product Cut Sheet  Head to Head vs Competitor "P"
Product Specifications
Mfg Part#: Greenheck SP-AP0511WL
Series: MASTER SPEC
Feature: Constant CFM
Control Technology: CFM Speed Selector
 Time Delay:  0-60 Minutes
Air and Sound Performance*
CFM Setting:  50  | 80  | 110
CFM at 0.000 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.125 Ps. (in. wg.):
  50  | 80  | 110
 CFM at 0.250 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.400 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.500 Ps. (in. wg.):  50  | 73  | 72

Sones at CFM Setting:  50  | 80  | 110
 Sones at 0.0 Ps. (in. wg.) <:  0.3 | 0.3 | 0.5
 Sones at 0.1 Ps. (in. wg.) <:  0.3 | 0.3 | 0.7
 Sones at 0.125 Ps. (in. wg.)<:  0.3 | 0.3 | 0.7
 Sones at 0.250 Ps. (in. wg.):  1.0 | 0.9 | 1.2
 Sones at 0.400 Ps. (in. wg.):  2.0 | 1.5 | 2.0
 Sones at 0.500 Ps. (in. wg.):  3.0 | 2.5 | 2.5
 *The ratings shown are based on tests and procedures performed in accordance with
Home Ventilation Institute. 0.1 through 0.6 in. wg

 Motor Specifications and Performance
 Motor Type:  EC Permanent Magnet Motor
 Voltage and Freq. Input:  120V A/C 60Hz 1 Phase
Service Factor:  1
 Thermal Protection:  Auto
Measurements at CFM Setting:   50   |  80   |  110
 CFM/Watt @ 0.4 SP:   3.6  |  4.5  |  6.2
Power Watts @ 0.4 SP:  13.9 | 17.7 | 17.7
RPM:  819  | 861  | 934
Lighting Specifications
Lighting Type: LED
Color Temperature: 3000K Warm White
Operating Wattage: 10W Dimmable chip panel
Light Output: 750 Lumens
Rated Life Hours: 50,000 Hrs.
 Optional Accessories (Accomodates up to 3)
Motion Detector Module: N/A
 Dehumidistat Module: 386691
 CO2 Sensor Module: 386693
 Nightlight Module: Included with Lighted Grille
Construction Specifications
Housing Material: Steel
Duct Connection: Universal 4", 5" or "6
Drive Type: Direct Drive
Height: 7-3/4 In.
Mounting: Ceiling
Grille Specifications
Material: Polypropylene
Grille Measurements: 13" x 13"
Control Specifications
Controls: Purchase Separately
Switch Type: Dual SP or 3-Way
Dimmer Type: LED Compatible
Occupancy Sensor: Not Recommended
Humidity Sensor: Module or Wall Switch
Timer Switch: Internal 0 - 60 minute
Measurements
Unit HxWxD: 7.75  x 10.313 x 10.313 Inches
Unit Weight: 10 lbs
 Package Dimensions: 17 x 14.5 x 12 Inches
Electrical Specifications
Voltage: 120V 60Hz
Warranty
Warranty Unit: 3-Year
Ratings and Standards
 ETL: Certified
UL Over Bath/Shower: Yes with GFCI Protected circuit
UL Listed Ceiling: Yes
cULus: Yes
 AMICA Certified: Yes - Certified
HVI 2100 Certified: Yes
Energy Star for Homes: Yes
 ASHRAE 62.2: Yes
 LEED: Yes
 CalGreen: Yes
 EPA Indoor airPLUS: Yes
 California Title 24: Yes
 WA State Resi. Ventilation: Yes
 Indoor Air Quality Code: Yes
