LAUNDRY / WHOLE HOUSE EXHAUST VENTILATION - MADE SIMPLE ULTIMATE PACKAGE A High-Performance Quiet Whole House Exhaust Fan w/Internal Humidity Sensor and Pre-Soffit Vent Termination


Catalog #: IAQ-VMS2109
30-110 CFM Bathroom/Whole House MASTER SPEC Ventilation Fan w/ Dehumidistat Sensor, Constant CFM, CFM Speed Selector, Virtually Silent EC Motor, Precision Air Flow Selector, ASHRAE 62.2 Compliant, 115V coupled with BFS LTS141 Pre-Soffit Termination
Price: $347.25
Your Price: $293.95
IAQ Made Simple Price: $279.25

* Qty:
* Denotes Required Fields.

An Exhaust Only Whole House Ventilation Solution
Very Good for Zone 4, 5 & 6  Good for Zones 2B, 2C, 3B & 3C

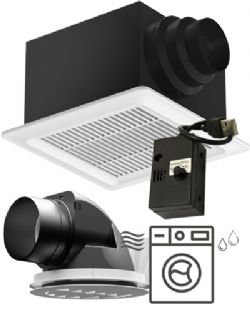

Package Includes:
1 - Greenheck Fan SP-AP0511W
1 - Greenheck Humidity Sensor Module 386691
1 - BathFan Solutions High Airflow Pre-Soffit Termination LTS141

Meet Code - Eliminate Callbacks - Exceed Customers Expectations
Package Description
The Whole House / Laundry Exhaust Only Ventilation - Made Simple Premium Package A High-Performance Greenheck SP-AP0511W Ventilation Fan w/ Dehumidistat module serves two great purposes. First the 2-speed fan runs continuously 24/7 at a low speed between 30 & 90 CFM and at an ultra quiet "purr" under 2.0 sones at 0.4 Ps. (in. wg.). By installing this continuously running whole house ventilation fan in the laundry room, you are strategically locating it in a room designed for air flow and away from sleeping quarters, although at > 2.0 sones it is nearly unnoticeable.

With the addition of the Dehumidistat sensor the fan will run at the selected high speed between 50 & 110 CFM to alleviate extra humidity from laundry or the homes indoor air. Level of humidity can be adjusted between 30 & 80%


 Best Applications
Whole House Ventilation in cold to mixed temperature climates, best in less humid Hot Climates so excess humidity is not drawn into the home. Where home owner wants continuous low speed ventilation to meet ASHRAE 62.2 standards for ventilation and is looking for a zero maintenance solution for whole house ventilation.
 Features & Benefits
  • Virtually Silent EC motor with 3 high speeds (50-80-110 CFM)
  • Built-in 0 to 60 minute time delay, in field adjustable
  • Standard 2-speed (Whole House ventilation)
  • Includes Dehumidistat module which meets CalGreen Standards
  • Dehumidistat module range of 30-80% Saves time in labor and added expense
  • ENERGY STAR rated
  • Industry-leading low sound levels
  • Constant CFM technology with Multi-Speed setting
  • Air Trimming feature allowing for precise airflow
  • Plug and play sensors available
  • Provides continuous or intermittent ventilation
  • Extremely low sound levels up to 0.625 in. wg.
  • Removable universal 4", 5", 6" duct connector
  • Quick-mount bracket enables installation from below
  • New construction and retrofits installations are quick & easy
  • Integral back-draft damper
  • High Airflow Pre-Soffit Termination for precise ventilation
  • No roof penetrations to leak or impede airflow of exhausted stale air
 Cons
Not a suitable choice for a super tight constructed homes may require a means of make up air. Not appropriate in Hot Humid Climates 1A, 2A and 3A* (Warm-Humid) *some counties in 3A are acceptable.
