WHOLE HOUSE HYBRID/BALANCED VENTILATION - MADE SIMPLE PREMIUM HOT PACKAGE HP Ventilation Fan w/ Light, 50-110 CFM, Constant CFM, EC Motor with Hybrid/Balanced Whole House Ventilation System, Hot Temperature Sensor, 6 Inch Duct and Pre-Soffit Fitting


Catalog #: IAQ-VMS4008
50-110 CFM High-Performance Greenheck MULTISpec Ventilation Fan w/ Light, Constant CFM Adaptive Technology, CFM Speed Selector, Virtually Silent EC Motor, 3-1/2 Inch Housing Depth, 115V coupled with an AirCycler g2k-06 Hybrid/Balanced Whole House Ventilation System, Hot Temp Sensor, 6 Inch Duct size and BFS LTS141 Pre-Soffit Vent Termination
Price: $450.61
Your Price: $401.49
IAQ Made Simple Price: $381.41

* Qty:
* Denotes Required Fields.

A Hybrid/Balanced Whole House Ventilation Solution
Excellent for Zones 2 & 3  Good for Zones 4A & 4B

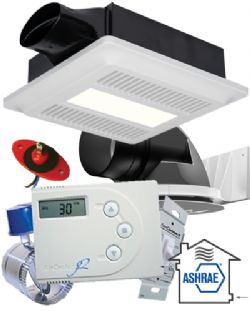

Package Includes:
1 - Greenheck High-Performance Ventilation Fan SP-LP0511L
1 - AirCycler Hybrid/Balanced Whole House Ventilation System AC-G2K-06
1 - AirCycler TempGuard Hot Temperature Sensor ACTG-H01
1 - BathFan Solutions High Flow Pre-Soffit Termination Fitting LTS141

Meet Code - Eliminate Callbacks - Exceed Customers Expectations
Package Description
The Whole House Hybrid/Balanced Ventilation - Made Simple Premium Hot Package A High-Performance Greenheck SP-LP0511L Ventilation Fan w/ Light controlled by the AirCycler g2-k Whole House Mechanical Ventilation System which includes the AirCycler g2 Furnace Fan Timer, Fan Connect Bath/Fan Light Switch with remote fan control, and a 6" motorized fresh air damper with a Tempguard ACTG-H01 hot temperature sensor. This system provides balanced and hybrid whole house supply-exhaust ventilation for homes in cool and cold climate zones.

By running the whole house hybrid/balanced ventilation system at the same time as the home's regular heating and cooling cycles, the Air Cycler g2-k System saves on additional utility costs.

Should regular heating and cooling cycles not run long enough to meet the desired or required ventilation, the AirCycler g2 can turn on the smaller and more economical Greenheck SP-LP0511L exhaust fan through the optional FanConnect Switch. With no need to run the large central fan to provide additional ventilation, homeowner complaints of cold air or noisy operation are eliminated and efficiency is drastically improved. Balanced ventilation can be achieved by energizing the Greenheck exhaust ventilation fan anytime the motorized damper is opened.


Best Applications
Whole House Ventilation in climates that are Hot or Warm that often go over 90 Degrees F but rarely below 30 degrees F. Where home owner is looking for an excellent and economical fresh air system with low maintenance and low energy cost but not as concerned with loss of conditioned indoor air. Recommend using a Merv 8 or better filter in forced air HVAC system.

Features & Benefits
  • Balanced or hybrid whole house supply-exhaust ventilation solution
  • Controls SP-LP0511L exhaust fan w/ light connected to FanConnect controller
  • Vitually Silent EC Motor ventilation fan with 3 high speeds (50-80-110CFM)
  • Constant CFM technology with Multi-Speed setting
  • No on going maintenance required
  • Lowest HERS score for whole house ventilation
  • Helps meet ASHRAE 62.2 ventilation standard
  • Patented algorithm offers precise ventilation control
  • Features programmable hours of operation
 Cons:
Dependent on home HVAC system utilizing a Merv 8 or better filter and home owner changing every 3 months, to maintain filtered supply air.
