At BathFan Solutions we believe that bath fans should deliver a high percentage of their rated air flow and that the completed system should be cost effective, including the labor. To accomplish this you need a quality fan appropriately sized, good ducting, and a low resistance termination fitting. Until now, what's been missing is a "termination installation system that brings it all together".

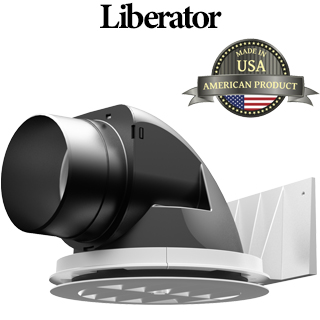

The First Professional Grade Soffit Discharge fan Termination System:

• Designed by and manufactured by an industry professional
• Designed to be completely installed before the soffit panel installation
• Designed for optimum system air flow
• That includes a built-in, air tight back draft damper

BathFan Solutions FAQs



Bath Fan Installed Performance: The Pressure is ON!

Note: This video is 75 min. long but really drives home the importance of components and the installation process.



• Designed with installer friendly innovative features
• Designed with the primary goal being that of optimum system air flow2
• Designed for the lowest total system installation cost3

• Eliminates multiple trips to the job-site: one person can now complete the duct connections at the fan and termination fitting in one trip
• Reduce ducting costs by eliminating waste: duct can be trimmed to fit with no excess
• Provides a more efficient use of labor

• Reduce call backs and improve customer satisfaction
• Easier compliance with building codes, standards and Energy Programs
• May reduce the need to buy larger rated fans
• May reduce the need to use larger duct work

• Low pressure drop: this results in better air flow
• No need to buy a separate back draft damper: this lowers total cost
• Air-tight design: this eliminates cold air comfort complaints
• Improves opportunity to pass HERS with initial installation
• Improves customer satisfaction and reduces call backs

• (1) the soffit location can offer the shortest overall ducting length lowering total system pressure drop
• (2) for exhaust fans up to and including 110 cfm rated fans while using 4" ductwork
• (3) total system cost including fan, ducting, labor, fitting, combined with benefit of reduced callbacks

• Designed to improve system performance of fans rated up to and including 110 CFM
• Designed for pre-soffit installation (new construction or remodel)
• Can be used with various soffit finishing systems and thicknesses ranging from 5/16" to 1/2"
• Overall height is less than 6" and will fit even under a 4/12 pitch roof
• Overall compact design will fit even in a narrow 12" soffit (10-1/2" fascia to building)
• Mounting system can be located anywhere there's a vertical plumb surface within an overhang
• Vent body snaps into the mounting bracket and can be rotated 180 degrees to align with duct
• Low resistance built-in back draft damper
• Duct connection stub is 2.25" long and stepped for easy connection and air sealing
• Can be used with 4" rigid, 4" semi-rigid, 4" Flex duct or and combination of these types
• Flush mounted termination grille provides enhanced aesthetics
• Termination grille can be rotated to direct air flow away from the building
• No need for water resistant flashing as needed with roof and wall discharge systems
