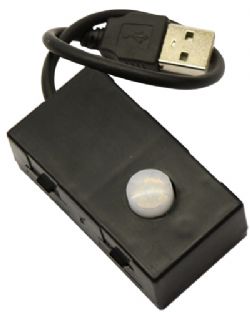

Greenheck 386690 Motion Sensor Module for SP-AP0511W Greenheck Ventilation Fan
Catalog #: GHK-386690
Greenhecks 386690 Motion Sensor Module installs in a plug and play fashion in the SP-AP0511W ventilation fans. The fan runs or boosts to high speed when the motion sensor is activated. The fan returns to low speed after a period of time delay once you are out of the detection range.
| Features & Benefits |
|
| Product Details |
|
The 386690 Motion Detection Module is specifically for the SP-AP0511W Greenheck ventilation fan without light.
Allows installation of motion sensor in seconds with simple plug and play installation. No need to install a wall switch device saving both labor time and additional expense. |
| Documentation & Links | |
| Brochure | Installation |
| Product ID | |
| Mfg Part#: | Greenheck 386690 |
| Series: | MasterSpec Modules |
| Product Group: | Fan Modules |
| Product Type: | Motion Sensor |
| Specifications | |
| Control Type: | Plug-In Module |
| Color: | Black |
| Country of Origin: | China |
| Measurements | |
| Unit HxWxD: | 2" x 1" x 3/4" |
| Unit Weight: | |
| Package Dimensions: | 2-1/4" x 2-1/2" x 1-5/8" |
| Settings | |
| Time Delay: | 0-60 Minute Fan Setting |
| Sensor Specifications | |
| Sensor Field of View: | 90 Degrees |
| Sensor Type: | Passive Infrared PIR |
| Electrical Specifications | |
| Voltage: | 5 Volts |
| Notes | |
| Max Ceiling Height: | 10 Feet |
| Max Qty of Sensors: | 3 different sensor per fan |
| Compatible with Light: | No only SP-AP0511W |
| Warranty | |
| Warranty Unit: | 1-Year |
| Ratings and Standards | |
| cETLus: | N/A |
| UL: | N/A |
| CSA: |
N/A |
