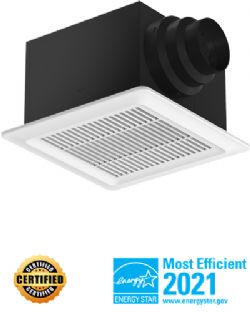

Greenheck SP-AP0511WHM Bathroom / Whole House Continuous Ventilation Exhaust Fan w/ Dehumidistat and Motion Sensor, 30-110 CFM, Constant CFM, EC Motor


Catalog #: GHK-SP-AP0511WHM
UPC #: 638029417792
30-110 CFM MASTERSpec Bathroom / Whole House Continuous Ventilation Exhaust Fan w/ Dehumidistat and Motion Sensor, Constant CFM, CFM Speed Selector, Virtually Silent EC Motor, Precision Air Flow Selector, ASHRAE 62.2 Compliant, 115V
Price: $357.75
Your Price: $302.25
Sale Price: $302.25

* Qty:
* Denotes Required Fields.

Comparable in Features but Outperforms Competitors:
Panasonic FV-0511VQC1

Cut Sheet | Brochure | Documents & Videos | Specs

 Features & Benefits
  • Virtually Silent EC motor with 3 high speeds (50-80-110 CFM)
  • Built-in 0 to 60 minute time delay, in field adjustable
  • Standard 2-speed (Whole House ventilation)
  • Includes Dehumidistat module which meets CalGreen standards
  • Dehumidistat Range of 30-80% Saves time in labor and added expense
  • Includes Motion Sensor module which meets ADA standards
  • Automatically turns fan on or to high when person enters the room
  • ENERGY STAR rated
  • Industry-leading low sound levels
  • Constant CFM technology with Multi-Speed setting
  • Air Trimming feature allowing for precise airflow
  • Plug and play sensors available
  • Provides continuous or intermittent ventilation
  • Extremely low sound levels up to 0.625 in. wg.
  • Removable universal 4", 5", 6" duct connector
  • Quick-mount bracket enables installation from below
  • New construction and retrofits installations are quick & easy
  • Integral back-draft damper
EC Motor Advantage
Greenheck's Electronically Commutated (EC) motor combines motor technology, controllability and energy-efficiency into one single low maintenance unit and is the industry's first fully controllable motor. The EC motor operates on AC power that is converted to DC - providing more efficient motor operation as compared to an AC operation. The controllability of the EC motor allows communication compatibility with a variable volume system. This allows speed adjustment of the motor to meet the needs of the system to exhaust air as needed and reduce over exhausting
conditioned air.
Documentation Videos
Product Brochure Installation Video
Instruction Manual The Certified Airflow Difference
Product Cut Sheet  Head to Head vs Competitor "P"
Product Specifications
Mfg Part#: Greenheck SP-AP0511WH
Series: MASTER SPEC
Feature: Constant CFM
Control Technology: CFM Speed Selector
 Time Delay:  0-60 Minutes
AMCA Certified Air and Sound Performance*
CFM Setting:  50  | 80  | 110
CFM at 0.000 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.125 Ps. (in. wg.):
  50  | 80  | 110
 CFM at 0.250 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.400 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.500 Ps. (in. wg.):  50  | 80  | 105
 CFM at 0.625 Ps. (in. wg.):  50  | 60  | 58

Sones at CFM Setting:  50  | 80  | 110
 Sones at 0.0 Ps. (in. wg.)<:  0.3 | 0.3 | 0.4
 Sones at 0.1 Ps. (in. wg.)<:  0.3 | 0.3 | 0.4
 Sones at 0.125 Ps. (in. wg.)<:  0.3 | 0.3 | 0.5
 Sones at 0.250 Ps. (in. wg.):  0.6 | 0.8 | 0.8
 Sones at 0.400 Ps. (in. wg.):  1.5 | 1.4 | 1.3
 Sones at 0.500 Ps. (in. wg.):  2.5 | 2.0 | 2.0
 Sones at 0.625 Ps. (in. wg.):  3.0 | 3.0 | 3.0
 *The ratings shown are based on tests and procedures performed in accordance with
Home Ventilation Institute. 0.1 through 0.6 in. wg

 Motor Specifications and Performance
 Motor Type:  EC Permanent Magnet Motor
 Voltage and Freq. Input:  120V A/C 60Hz 1 Phase
Service Factor:  1
 Thermal Protection:  Auto
@ CFM Setting:   50   |  80   |  110
 Max Amps:  0.24 | 0.26 | 0.30
 CFM/Watt @ 0.4 SP:   3.7  |  5.0  |  4.9
Power Watts @ 0.4 SP:  13.7 | 18.1 | 20.1
RPM:  820  | 831  | 861
Lighting Specifications
Lighting Type: Night Light Optional
Color Temperature: N/A
Operating Wattage: N/A
Light Output: N/A
Color Rendering Index: N/A
 Optional Accessories (Accomodates up to 2 additional)
Motion Detector Module: 386690
 Night Light Module: 386691
 CO2 Sensor Module: 386693
Construction Specifications
Housing Material: Steel
Duct Connection: Universal 4", 5" or "6
Drive Type: Direct Drive
Height: 7-3/4 In.
Mounting: Ceiling
Grille Specifications
Material: Plastic
Grille Measurements: 13" x 13"
Control Specifications
Controls: Purchase Separately
Switch Type: Dual SP or 3-Way
Dimmer Type: N/A
Occupancy Sensor: Module or Wall Switch
Humidity Sensor: Module (Supplied in Box)
Timer Switch: Wall Switch
Measurements
Unit HxWxD: 7.75  x 10.313 x 10.313 Inches
Unit Weight: 10 lbs
 Package Dimensions:  17 x 14.5 x 12 Inches
Electrical Specifications
Voltage: 120V 60Hz
Warranty
Warranty Unit: 3-Year
Ratings and Standards
 ETL: Certified
UL Over Bath/Shower: Yes
UL Listed Ceiling: Yes with GFCI Protected circuit
cULus: Yes
AMICA Certified: Yes - Certified
 HVI 2100 Certified: Yes
ENERGY STAR for Homes:  Yes - Most Efficient 2021
 ASHRAE 62.2: Yes
 LEED: Yes
 CalGreen: Yes
 EPA Indoor airPLUS: Yes
 California Title 24: Yes
WA State Resi. Ventilation: Yes
 Indoor Air Quality Code: Yes
