GHK-SP-B80 - SP-B80

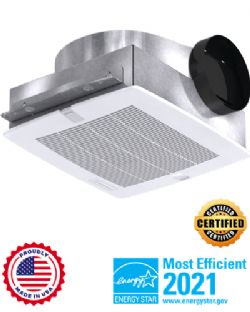

Greenheck SP-B80 Bathroom TRUSpec Ventilation Fan, 46-94 CFM, Precision Speed, PSC Motor, Energy Star Rated

Catalog #: GHK-SP-B80

UPC #: 123456789021

46-94 CFM Bathroom TRUSpec Ventilation Fan, Low-Profile, Precision Speed, Low Sone Operation, Energy Efficient PSC Motor, Energy Star Rated, 115V, Made in the USA

Greenheck Model SP-B80 is a high volume exhaust fan, designed to provide the lowest sound levels for exhaust. Featuring a low profile housing, this exhaust fan quietly and efficiently ventilates your space using 70% less energy than a standard fan. The SP-B80 includes a round standard outlet for quick, easy connections along with an integral damper preventing unwanted backdrafts. Units are speed controllable and are ideal for garage and basement ventilation when paired with AirCycler controls. The SP-B Series offers a slimmed-down profile to make installing, even in the smallest places, a breeze.

Best Applications
Whole House Ventilation, Bathroom Ventilation, Spot Ventilation Laundry Room Ventilation, Exercise Room Ventilation
Competitor Cross Reference

Features & Benefits
Energy Star Rated Compact size for height restricted areas Round standard outlet for quick, easy connection Industry-leading low sound levels Integral damper prevents unwanted backdrafts Speed controllable Designer grille options with motion and humidity sensors Made in Wisconsin, USA
Product Specifications
Mfg Part#:	Greenheck SP-B80
Series:	TRUSpec
Feature:	Certified Performance
Control Technology:	Precision Speed
Air and Sound Performance*
	CFM \| Sones
CFM at 0.000 Ps. (in. wg.):	94 \| 0.8
CFM at 0.125 Ps. (in. wg.):	77 \| 0.9
CFM at 0.250 Ps. (in. wg.):	62 \| 1.3
CFM at 0.375 Ps. (in. wg.):	46 \| 2.0
*The ratings shown are based on tests and procedures performed in accordance with AMCA publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Motor Specifications and Performance
Motor Type:	PSC Permanent Split Capacitor
Horsepower:
Service Factor:	1
Voltage and Freq. Input:	120V A/C 60Hz 1 Phase
Motor Insulation:	B
Thermal Protection:	Auto
Nominal Efficiency:	28.5
RPM:	720-900
Power Watts:	4.5
Speed Controllable:	Yes
Lighting Specifications
Lighting Type:	N/A
Color Temperature:	N/A
Operating Wattage:	N/A
Light Output:	N/A
Color Rendering Index:	N/A
Optional Accessories
Motion Sensor Grille:	880689
Motion & Humidity Sensor Grille:	880690
Construction Specifications
Housing Material:	Galvanized Steel
Duct Connection:	6 Inch
Drive Type:	Direct Drive
Impeller Type:	Centrifugal Wheel
Impeller Material:	Polypropylene
Height:	7 In.
Mounting:	Horizontal Ceiling
Grille Specifications
Material:	Polypropylene
Grille Measurements:	14 7/8" x 13 1/4"
Control Specifications
Controls:	Purchase Separately
Switch Type:	SP or 3-Way
Dimmer Type:	N/A
Occupancy Sensor:	Grille Option
Humidity Sensor:	Grille Option
Timer Switch:	Wall Switch
Measurements
Unit HxWxD:	7 x 13.875 x 11.5 Inches
Unit Weight:	9 lbs.
Electrical Specifications
Voltage:	120V 60Hz
Unit Amps:	.16 Amps
Unit Watts:	18.6
Warranty
Warranty Unit:	3-Year
Ratings and Standards
Air & Sound:	AMCA
UL Listing:	cUL 507
cULus:	507
Energy Star:	Yes
