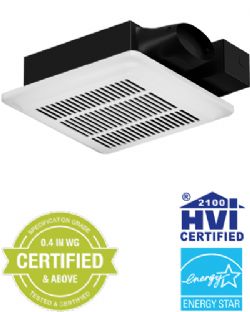

Greenheck MULTISpec SP-LP0511H High-Performance, Low-Profile, Bathroom / Local Ventilation Exhaust Fan w/Internal Humidity Sensor, 50-110 CFM, Constant CFM, EC Motor
Catalog #: MLT-LP0511H
50-110 CFM High-Performance Bathroom / Local Ventilation Exhaust MULTISpec Fan w/Internal Humidity Sensor, Constant CFM Adaptive Technology, Virtually Silent EC Motor, 3-1/2 Inch Housing Depth, 115V
|
NEW Arriving Spring of 2024! |
| Features & Benefits | ||
|
||
| EC Motor Advantage | ||
|
Greenheck's Electronically Commutated (EC) motor combines motor technology, controllability and energy-efficiency into one single low maintenance unit and is the industry's first fully controllable motor. The EC motor operates on AC power that is converted to DC - providing more efficient motor operation as compared to an AC operation. The controllability of the EC motor allows communication compatibility with a variable volume system. This allows speed adjustment of the motor to meet the needs of the system to exhaust air as needed and reduce over exhausting
conditioned air.
|
||
| Documentation | Videos |
| Product Brochure | Installation Video |
| Instruction Manual | The Certified Airflow Difference |
| Product Spec Sheet | Head to Head vs Competitor "P" |
| Product Specifications | |
| Mfg Part#: | Greenheck SP-LP0511H |
| Series: | MULTISpec |
| Feature: | Constant CFM |
| Control Technology: | CFM Speed Selector |
| HVI Certified Air and Sound Performance* | |
| CFM Setting: | 50 | 80 | 110 |
| CFM at 0.000 Ps. (in. wg.): | 50 | 80 | 110 |
|
CFM at 0.125 Ps. (in. wg.): |
50 | 80 | 110 |
| CFM at 0.250 Ps. (in. wg.): | 50 | 80 | 110 |
| CFM at 0.400 Ps. (in. wg.): | 50 | 80 | 109 |
| CFM at 0.500 Ps. (in. wg.): | 50 | 80 | 102 |
| Sones at CFM Setting: | 50 | 80 | 110 |
| Sones at 0.100 Ps. (in. wg.): | <0.3 | 0.7 | 1.5 |
| Sones at 0.250 Ps. (in. wg.): | 0.8 | 1.4 | 2.5 |
| Sones at 0.400 Ps. (in. wg.): | 1.5 | 2.0| 3.0 |
| Sones at 0.500 Ps. (in. wg.): | 2.5 | 2.5 | 3.0 |
|
*The ratings shown are based on tests and procedures performed in accordance
with Home Ventilation Institute. 0.1 through 0.6 in. wg |
|
| Motor Specifications and Performance | |
| Motor Type: | EC Permanent Magnet Motor |
| Voltage and Freq. Input: | 120V A/C 60Hz 1 Phase |
| Service Factor: | 1 |
| Thermal Protection: | Auto |
| @ CFM Setting: | 50 | 80 | 110 |
| Max Amps: | 0.22 | 0.29 | 0.35 |
| CFM/Watt @ 0.4 SP: | 5.8 | 6.0 | 5.0 |
| Power Watts @ 0.4 SP: | 10.0 | 14.6 | 17.4 |
| RPM: | 752 | 838 | 1017 |
| Lighting Specifications | |
| Lighting Type: | N/A |
| Color Temperature: | N/A |
| Operating Wattage: | N/A |
| Light Output: | N/A |
| Color Rendering Index: | N/A |
| Construction Specifications | |
| Housing Material: | Steel |
| Duct Connection: | 4" Oval |
| Drive Type: | Direct Drive |
| Height: | 3-1/2 In. |
| Mounting: | Ceiling or Wall |
| Grille Specifications | |
| Material: | Plastic |
| Grille Measurements: | 13" x 13" |
| Control Specifications | |
| Controls: | Integral Humidity Sensor |
| Switch Type: | Dual SP or 3-Way |
| Dimmer Type: | N/A |
| Occupancy Sensor: | Wall Switch |
| Humidity Sensor: | Integral |
| Timer Switch: | Wall Switch |
| Measurements | |
| Unit HxWxD: | 3-1/2 x 12 x 15 inches |
| Unit Weight: | 9 lbs. |
| Package Dimensions: | 8 x 17 x 14.5 inches |
| Electrical Specifications | |
| Voltage: | 120V 60Hz |
| Warranty | |
| Warranty Unit: | 3-Year |
| Ratings and Standards | |
| ETL: | Certified |
| ETL Over Bath/Shower: | Yes |
| ETL Listed Ceiling: | Yes with GFCI Protected circuit |
| cULus: | Yes |
| AMICA Certified: | Yes - Certification Pending |
| HVI 2100 Certified: | Yes |
| ENERGY STAR for Homes: | Yes |
| ASHRAE 62.2: | 50 CFM min. for Bathroom |
| LEED: | |
| CalGreen: | Yes |
| EPA Indoor airPLUS: | |
| California Title 24: | |
| WA State Resi. Ventilation: | |
| Indoor Air Quality Code: |
|
