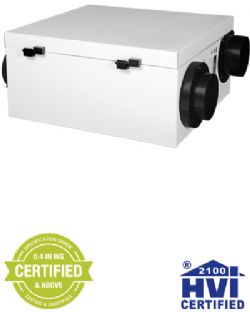

Greenheck SYNC-110SEA-S1 Side-Port Energy Recovery Ventilator (ERV), 50-130 CFM, Precision Balancing, Adaptive Variable Speed, ECM Motors, Total Recovery Core, HVI Certified


Catalog #: SYNC-110SEA-S1
50-130 CFM SYNC 110 Side-Port Energy Recovery Ventilator (ERV), Low Profile, Precision Balancing, Adaptive Variable Speed, ECM Motors, Total Recovery Core, Washable MERV-6 Filter, Frost Prevention Feature, HVI Certified
NEW Arriving Summer of 2024!
Price: $0.00
Our Price: $0.00

* Qty:
* Denotes Required Fields.

Comparable in Features but Outperforms Competitors:
Panasonic FV-10VEC2 Broan ERV100S, ERV100SP

Typical House Size: up to 1,500 Sq. Ft per ASHRAE (Total Sq. Ft. x Ceiling Height /60 X 0.35)

The SYNC110SEA-S1 Energy Recovery Ventilator (ERV) is the perfect compact, high-efficiency balanced ventilation solution for single or multi-family installations with limited mechanical space. The low-profile design (9.75 inch height) simplifies installations in bulkheads and drop ceilings.
EXCLUSIVE! Precision Balancing When paired with the PrecisionSYNC control, the SYNC-110SEA-S1 measures the maximum airflow capacity of the installation and enables the installer to dial in precise airflow to meet design and code requirements.
The Total Recovery Core transfers heat and moisture between two cross-flow airstreams without allowing cross contamination. When used for balanced mechanical ventilation in humid environments, the unit helps to reduce air conditioning (AC) energy costs. In colder climates,  moisture transfer is reversed. The unit helps to moderate humidity and the core is a highly efficient heat exchanger. The core can be easily removed for cleaning or service.

Frost Prevention Temperature sensor activated frost prevention. Supply air shuts off to defrost core with warm exhaust air at high speed. Condensation lines are not required.
HVI Certified

Features & Benefits
  • The perfect high-performance solution for single or multifamily installations with limited mechanical space.
  • The low-profile design; only 9.75 inches high, simplifies installations an bulkheads and drop ceilings.
  • Powered by two electronically commutated motors (ECM) with adaptive, variable speed technology programmed to adapt to the static pressure associated with a dirty filter or core. The motor reacts to increased static pressure by increasing its speed to ensure you have the airflow required to maintain a healthy balance.
  • 50-130 CFM operational range with 3 high-speed selections
  • Fault Indicator Display (FID) configuration available (model SYNC-110SEF-S1). Title 24 Compliant
  • Industry-leading low sound levels
  • Each airstream has an independent centrifugal blower with EC motor and multiple fan speed operations
  • HVI Certified airflow
  • A convenient hinged door without screws and a removable motor and electronic assembly allow for easy maintenance and service.
  • Swing open junction box cover for quick access to the circuit board and DIP switches.
  • Washable antimicrobial MERV-6 air filters in exhaust and supply airstreams. MERV-13 upgrade option is available.
  • Brackets included for easy ceiling installation
  • 20 GA pre-painted galvanized steel construction for superior corrosion resistance, insulated to prevent exterior condensation.

Documentation Videos

Product Specifications
Mfg Part#: Greenheck SYNC-110SE-S1
Series: SYNC
Feature: Adaptive Variable Speed
Control Technology: Optional
High Speed Timer: Optional

 Motor Specifications and Performance
 Motor Type:  EC Permanent Magnet Motor
 Voltage and Freq. Input:  120V A/C 60Hz 1 Phase
Watts / Low Speed:  22
 Watts / High Speed:  50
 Amp Rating:  1.4
Performance at 49 cfm (23 L/s)
Sensible Effectiveness (ASE):  32 Degrees F  80%
Sensible Efficiency (SRE):  32 Degrees F  72%
Total Efficiency (TRE):  95 Degrees F  51%

 Airflow Performance in. wg. (PA)  0.3 (75) | 0.4 (100) | 0.5 (125)
Net Supply Airflow CFM 117 (55) | 108 (51)  |  97 (46)
Gross Supply Airflow CFM 119 (56) | 110 (52)  | 100 (47)
Gross Exhaust Airflow CFM 117 (55) | 110 (52)  | 104 (49)

Construction Specifications
Housing Material: 20 ga. Pre-painted Galvanized Steel
Duct Connection: 5 Inch
Drive Type: Direct Drive
Height: 9-3/4 In.
Mounting: Wall or Ceiling
Filter Specifications
Supplied: MERV-6 Antimicrobial Washable
Optional: Merv 13 Part # 485463
Control Selection
5-Speed Fan Operation
on each mode
Precision-SYN Digital Wall Control
435244
2-Speed w/ Humidity Sensor:
 Wall Switch 435245
2-Speed Intermittent:
 Wall Switch 435246
Timer 20/40/60 Minute: Wall Switch 435247
Wireless Timer 20/40/60 Min: Wall Switch 435248
Wireless Timer Switch Repeater: Wall Switch 435249
Measurements
Unit HxWxD: 9.75  x 19.375 x 20.75 Inches
Package Unit Weight: 36 lbs
 Package Dimensions:
Electrical Specifications
Voltage: 120V 60Hz
 Watts / Low Speed: 22
 Watts / High Speed: 50
 Amp Rating: 1.4
Warranty
Warranty Unit:
Ratings and Standards
UL/CSA: Certified
UL: Conforms under CSA
 HVI 2100 Certified: Yes
cULus: Yes
