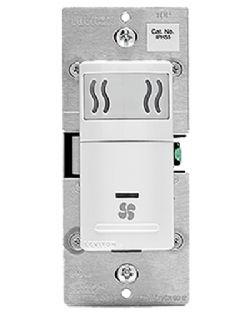

Leviton Humidity Sensor and Fan Control, Single Pole, 1/6th HP Motor, Adjustable Humidity Levels and Minimum ON Time - White


Catalog #: LEV-IPHS5-1LW
UPC #: 07847765489
Humidity Sensor and Fan Control, Single Pole, 1/6th HP Motor, Adjustable Humidity Levels and Minimum On Time - White
Price: $58.92
Your Price: $49.10

* Qty:
* Denotes Required Fields.


 Features & Benefits
  •  Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
  • Sensor uses microprocessor and digital sensing technology to continuously monitor and manage humidity levels in a room
  • Built-in timer sets the "minimum ON time" for the ventilation fan. The sensor time setting can be custom set to 10, 20, 30 or 45 minutes intervals. The sensor will continue to operate the fan for the minimum time set or until there is a reduction in room humidity level
  • A sensitivity level adjustment allows users to adjust the sensors's sensitivity to ambient air to prevent false cycling
  • Features an Air Cycle mode which automatically turns ON the ventilation fan for a set period of time and repeats the cycle hourly (eg. 20 minutes ON/40 minutes OFF each hour)
  • Replaces single pole switch for control of ventilation fan or fan/light combination
  • Fits a standard wall box and requires a neutral wire for operation
  • Can be used to comply with CALGREEN, Part II, Indoor Air Quality and Exhaust
  • Can be used to comply with the requirements of 2019 California Title 24, Part 6 Indoor Air Quality and Mechanical Ventilation
  • Meets the requirements of ASHRAE 62.2
  • Five-Year Limted warranty
Product Details
The Leviton Humidity Sensor and Fan Control automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew. The sensor uses a microprocessor combined with state-of-the-art digital sensing technology to continuously monitor and manage humidity levels in areas of the home prone to condensation and mildew. It features user-friendly controls to adjust sensitivity, humidity level and time-out settings. The sensor can replace a single pole switch and can be used with most bathroom or ventilation fans or fan/light combinations. It is designed to fit within a standard wall box and requires a neutral wire for operation. Contemporary in design, the Humidity Sensor and Fan Control is the ideal solution for controlling ventilation in areas of high humidity, dampness or rooms prone to condensation and mildew such as: Bathrooms, Basements, Laundry Rooms and Home Spas. The sensor also helps reduce energy usage by automatically operating the fan only when needed to control excess humidity.

Documentation & Links
Brochure Instruction Sheet
Product Bulletin Cleaning Instructions


Support Videos
Product Video Installation Video
Product Settings Video

 Product ID
Mfg Part#: Leviton IPHS5-1LW
Series: Humidity Controls
Product Group: Ventilation Controls
 Product Type: Humidity Sensor Switch
Specifications
Control Type: Wall Box (2.5" Min. Depth)
Switch Type: Decora
Color: White
 Wallplate: Order Separately
Country of Origin: China
Measurements
Unit HxWxD: 4.13  x 1.75 x 1.22 Inches
Unit Weight: .38 lbs
Package Dimensions:
Electrical Specifications
Voltage: 120V 60Hz
 Neutral: Required
 Ground Connection: No
Max Fan HP: 1/6th HP
 Power Consumption: <0.5 Watts
Max Light Watts:  600W Incandescent 150W LED/CFL
Lamp Types:  Incandescent, LED/CFL, Ballast
 Adjustments
 Time-Delay: 10m-45m
 Humidity: 20 to 80 Percent
Warranty
Warranty Unit: 5-Year Limited
Ratings and Standards
cETLus; Yes
CUL/US: Yes
2016 CALGREEN: Yes
California Title 24:
Yes
 ASHRAE: 62.2 Compliant when used with compliant fan
