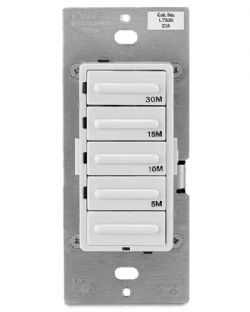

Leviton 30 Minute, 4 Preset Decora Wall Swicth Timer - White, Ivory and Light Almond
Catalog #: LEV-LTB30-1LZ
UPC #: 07847745922
1800W / 20A 1HP-120V, 120 Volt AC 60Hz, Single-Pole, 3-Way with Vizia Remote, Decora, Four Preset 5-10-15-30 Minutes, Electronic, Incandescent / Inductive Leviton Countdown Timer, Neutral Required - White, Ivory, Light Almond
| Features & Benefits | ||
|
||
| Product Details | |
|
The Leviton Decora Timer Switch offers advanced features , superior accuracy and contemporary aesthetics. It provides convenient timed control of lighting and motor loads of bathroom and ventilation fans. This timer allows users to simply press and hold the top button to initiate overrideoverride or press and two buttons to convert the 30 minute timer into other available time intervals. It has smooth green LED locator light and offers three colors in one box.
|
|
| Documentation & Links | |
| Brochure | Instruction Sheet |
| Product Bulletin | Cleaning Instructions |
| Support Videos | |
| Product Video | Installation Video |
| Product Settings Video | |
| Product ID | |
| Mfg Part#: | Leviton LTB30-1LZ |
| Series: | LTB |
| Product Group: | Ventilation Controls |
| Product Type: | Preset Timer Switch |
| Specifications | |
| Control Type: | Wall Box (2.5" Min. Depth) |
| Switch Type: | Decora |
| Color: | White, Ivory and Light Almond |
| Wallplate: | Order Separately |
| Country of Origin: | China |
| Measurements | |
| Unit HxWxD: | 4.13 x 1.75 x 1.22 Inches |
| Unit Weight: | |
| Package Dimensions: | |
| Electrical Specifications | |
| Voltage: | 120V 60Hz |
| Neutral: | Required |
| Ground Connection: | No |
| Max Fan HP: | 1 HP |
| Power Consumption: | <0.5 Watts |
| Max Light Watts: | 1800W Incandescent 600W LED/CFL |
| Lamp Types: | Incandescent, LED/CFL, Ballast |
| Adjustments | |
| Timer Presets: | 5m-10m-15m-30m |
| Warranty | |
| Warranty Unit: | 5-Year Limited |
| Ratings and Standards | |
| CUL/US: | Yes File #E328804 |
|
|
|
