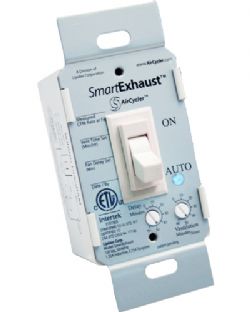

AirCycler SmartExhaust Bath Fan/Light Toggle Switch with Ventilation Control & Delay Timer -Almond
Catalog #: ACY-SE1-A
UPC #: 857702001046
SmartExhaust Bath Fan/Light Switch is a simple and efficient solution for achieving adequate bathroom ventilation and meeting exhaust ventilation requirements. Makes a standard bath fan ASHRAE 62.2 compliant when used with an ASHRAE 62.2 compliant fan - Almond
 |
 |
|
 |
 |
|
| Features & Benefits | ||
|
* Earn LEED and ENERGY STAR points for enhanced exhaust ventilation* |
||
| * Make Standard bath fans ASHRAE 62.2 Compliant* |
||
|
* Smart microprocessor provides precise, user-controlled ventilation |
||
|
* Works with most incandescent, CFL and LED lights |
||
| *When used with ASHRAE 62.2 compliant fans | ||
| Product Details | ||
|
The SmartExhaust is a bath fan and light toggle switch that also serves as a ventilation
controller and fan delay timer. This product provides whole house ventilation.
With other fan and light switches, the time that someone is occupying the
bathroom does not always provide sufficient run time for the fan to eliminate
bathroom humidity or contaminants. Using the SmartExhaust ventilation
and delay settings , the fan can be set to run on a timer so that adequate
ventilation can be met even after someone exits the bathroom.
Using the Ventilation setting, the user is able to set the number of minutes
per hour that the bathroom exhaust fan should run to achieve desired/required
ventilation. Using the Delay setting, the user is able to set the number of
minutes the fan should run after the SmartExhaust switch has been turned off.
When the switch is turned off, the fan continues to run for the set delay time.
|
||
| Product ID | ||
| Mfg Part#: | AirCycler SE1-A | |
| Series: | SmartExhaust | |
| Product Group: | Fresh Air Systems | |
| Product Type: | Exhaust Only Solutions | |
| Specifications | ||
| Control Type: | Wall Box (2.5" Min. Depth) | |
| Switch Type: | Toggle | |
| Color: | Almond | |
| Country of Origin: | China | |
| Approx. Annual Energy System Cost - 2500 Sq. Ft. 4 Bed @ 12 Cents Kwh | ||
| Older Construction: | Low $25 - High $50 | |
| Newer Construction: | Low $85 - High $115 | |
| Annual Ventilation Cost Calculator | ||
| Measurements | ||
| Unit HxWxD: | 4-1/4 x 1-13/16 x 1-1/2 Inches | |
| Unit Weight: | .38 lbs | |
| Package Dimensions: | 4-5/8 x 3 x 2.25 Inch | |
| Electrical Specifications | ||
| Voltage: | 120V 60Hz | |
| Max Fan Watts: | 150 Watts (Red Wire) | |
| Max Light Watts: | 450Watts (Blue Wire) | |
| Lamp Types: | Incandescent, CFL, LED (Dimmable Recommended) | |
| Warranty | ||
| Warranty Unit: | 1-Year | |
| Ratings and Standards | ||
| cETLus; | Yes | |
| UL: | Conforms to UL Std 917 | |
| Intertek: | 3191003 | |
| CSA: |
Certified to CSA Std C22.2 No. 117-92 |
|
| ASHRAE: | 62.2 Compliant when used with compliant fan | |
| LEED & Energy Star: | Compliant when used with ASHRAE 62.2 compliant fan | |
