AirCycler-SED-S

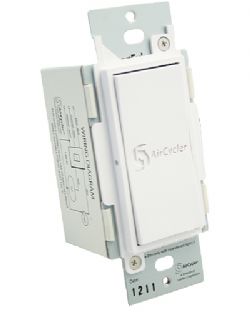

AirCycler SmartExhaust Bath Fan/Light Decora Rocker Switch/Dimmer with Ventilation Control & Delay Timer -White

Catalog #: ACY-SED-S

UPC #: 857702001053

SmartExhaust Bath Fan/Light Decora Rocker Switch/Dimmer is a simple and efficient solution for achieving adequate bathroom ventilation and meeting exhaust ventilation requirements. Makes a standard bath fan ASHRAE 62.2 compliant when used with an ASHRAE 62.2 compliant fan - White

Features & Benefits

* Earn LEED and ENERGY STAR points for enhanced exhaust ventilation*

* Make Standard bath fans ASHRAE 62.2 Compliant*

* Smart microprocessor provides precise, user-controlled ventilation

* Optional light & fan time out after 60 minutes

* Works with most incandescent, CFL and LED lights (Dimmable Recommended)

*When used with ASHRAE 62.2 compliant fans

Product Details

The SmartExhaust is a Decora rocker bath fan and light switch/dimmer that also serves as a ventilation

controller and fan delay timer. This product provides whole house ventilation.

With other fan and light switches, the time that someone is occupying the

bathroom does not always provide sufficient run time for the fan to eliminate

bathroom humidity or contaminants. Using the SmartExhaust ventilation

and delay settings , the fan can be set to run on a timer so that adequate

ventilation can be met even after someone exits the bathroom.

Using the Ventilation setting, the user is able to set the number of minutes

per hour that the bathroom exhaust fan should run to achieve desired/required

ventilation. Using the Delay setting, the user is able to set the number of

minutes the fan should run after the SmartExhaust switch has been turned off.

When the switch is turned off, the fan continues to run for the set delay time.

Documentation & Links

Instructions	Trouble Shooting Guide
Brochure	Testing Guide
Support Videos

Product ID

Mfg Part#:

AirCycler SED-S

Series:

SmartExhaust

Product Group:

Fresh Air Systems

Product Type:

Exhaust Only Solutions

Specifications

Control Type:

Wall Box (2.5" Min. Depth)

Switch Type:

Decora Rocker Switch/Dimmer

Color:

White (SEDR-W Included)

Color Change Kit:

SEDR-* A-Almond I-Ivory BL-Black BR-Brown W-White

Country of Origin:

Taiwan/China

Approx. Annual Energy System Cost - 2500 Sq. Ft. 4 Bed @ 12 cents Kwh

Older Construction:

Low $25 - High $50

Newer Construction:

Low $85 - High $115

Measurements

Unit HxWxD:

4-1/4 x 1-13/16 x 1-1/2 Inches

Unit Weight:

.38 lbs

Package Dimensions:

4-5/8 x 3 x 2.25 Inch

Electrical Specifications

Voltage:

120V 60Hz

Max Fan Watts:

150 Watts (Red Wire)

Max Light Watts:

450Watts (Blue Wire) 150W LED

Lamp Types:

Incandescent, CFL, LED (Dimmable Recommended)

Dimmer Compatibility:

Compatible with most but not all LED bulbs. There are a wide variety of bulb types and bulb qualities now available - we recommend using a DIMMABLE LED bulb to avoid light flickering issues.

Warranty

Warranty Unit:

1-Year

Ratings and Standards

UL:

Conforms to UL Std 917

cETLus:

Yes

Intertek:

3191003

CSA:

Certified to CSA Std C22.2 No. 117-92

ASHRAE:

62.2 Compliant when used with compliant fan

LEED & Energy Star:

Compliant when used with ASHRAE 62.2 compliant fan
