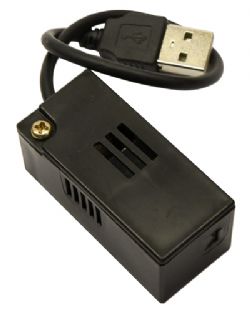

Greenheck 386693 CO2 Sensor Module for SP-AP0511W series Greenheck Ventilation Fans


Catalog #: GHK-386693
Greenhecks 386693 CO2 Sensor Module begins to detects environmental CO2 concentration when fan has been on for 2 minutes. The fan runs or boosts to high speed when concentration level is over 1000 ppm. The fan returns to low speed after a period of time delay or when concentration level is less thean 800 ppm.
Price: $85.00
Your Price: $72.25

* Qty:
* Denotes Required Fields.
Features & Benefits
  • Automatically turns the fan on or boosts the flow when CO2 level is above the set point
  • Turns fan off or back to low speed when CO2 is reduced below set point or time runs out
  • Attaches to inside of fan body and plugs into USB port on fan body
  • Great where ventilation is required where larger groups of people gather in a confined space.
Product Details
The 386693 CO2 Sensor Module is specifically for the SP-AP Series Greenheck ventilation fans.
Allows installation of CO2 sensor in seconds with simple plug and play installation. No need to install a wall switch device saving both labor time and additional expense.
Documentation & Links
Brochure Installation


 Product ID
Mfg Part#: Greenheck 386693
Series: MasterSpec Modules
Product Group: Fan Modules
 Product Type: CO2 Sensor
Specifications
Control Type: Plug-In Module
Color: Black
Country of Origin: China
Measurements
Unit HxWxD: 2-1/16" x 15/16" x 13/16"
Unit Weight:
Package Dimensions:  2-1/4" x 2-1/2" x 1-5/8"
Settings
 Time Delay:  Fan Setting 0-60 Minutes

Sensor Specifications
 CO2 ON Level: 1000 ppm
 CO2 OFF Level: 800 ppm
Electrical Specifications
Voltage: 5 Volt
Notes
 Max Qty of Sensors: 3 different sensor per fan
 Compatible with Light: Yes
Warranty
Warranty Unit: 1-Year
Ratings and Standards
cETLus; N/A
UL: N/A
CSA:
N/A
