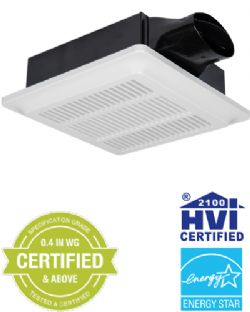

Greenheck MULTISpec SP-LP0511 High-Performance, 2-Speed, Low-Profile, Bathroom / Local Ventilation Exhaust Fan, 50-110 CFM, Constant CFM, EC Motor


Catalog #: MLT-LP0511
UPC #: 638029417778
50-110 CFM High-Performance MULTISpec Ventilation Fan, Constant CFM Adaptive Technology, CFM Speed Selector, Virtually Silent EC Motor, 3-1/2 Inch Housing Depth, 115V
Price: $111.75
Your Price: $95.00
BuyIAQ Special: $85.50

* Qty:
* Denotes Required Fields.

 Features & Benefits
  • Virtually Silent EC motor with 3 high speeds (50-80-110 CFM)
  • Constant CFM adaptive, variable speed technology programmed to overcome the static pressure associated with common residential installation scenarios (0.4 in WG and above). The motor reacts to increased static pressure by increasing the speed to ensure you have the airflow required to remove unhealthy air and moisture.
  • Both Fan AirFlow and Sound are tested and certified at 0.4 in WG and above, an industry first.
  • 3-1/2" Housing Depth - the low profile is ideal for wall or ceiling installations. Easily fits in a 2x4 stud bay
  • ENERGY STAR rated
  • Industry-leading low sound levels
  • Extremely low sound levels up to 0.625 in. wg.
  • 4" Oval duct connector
  • L-shaped bracket for support and ease of installation
  • New construction and retrofits installations are quick & easy
  • Integral back-draft damper
EC Motor Advantage
Greenheck's Electronically Commutated (EC) motor combines motor technology, controllability and energy-efficiency into one single low maintenance unit and is the industry's first fully controllable motor. The EC motor operates on AC power that is converted to DC - providing more efficient motor operation as compared to an AC operation. The controllability of the EC motor allows communication compatibility with a variable volume system. This allows speed adjustment of the motor to meet the needs of the system to exhaust air as needed and reduce over exhausting
conditioned air.
Documentation Videos
Product Brochure Installation Video
Instruction Manual The Certified Airflow Difference
Product Spec Sheet  Head to Head vs Competitor "P"
Product Specifications
Mfg Part#: Greenheck SP-LP0511
Series: MULTISpec
Feature: Constant CFM
Control Technology: CFM Speed Selector
HVI Certified Air and Sound Performance*
CFM Setting:  50  | 80  | 110
CFM at 0.000 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.125 Ps. (in. wg.):
  50  | 80  | 110
 CFM at 0.250 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.400 Ps. (in. wg.):  50  | 80  | 110
CFM at 0.500 Ps. (in. wg.):  50  | 80  | 91

Sones at CFM Setting:   50  | 80  | 110
 Sones at 0.100 Ps. (in. wg.): <0.3 | 0.7 | 1.5
 Sones at 0.250 Ps. (in. wg.):   0.7 | 1.2 | 2.1
 Sones at 0.400 Ps. (in. wg.):   1.4 | 1.8 | 2.2
 Sones at 0.500 Ps. (in. wg.):   2.1 | 2.3 | 2.3
 *The ratings shown are based on tests and procedures performed in accordance
with Home Ventilation Institute. 0.1 through 0.6 in. wg

 Motor Specifications and Performance
 Motor Type:  EC Permanent Magnet Motor
 Voltage and Freq. Input:  120V A/C 60Hz 1 Phase
Service Factor:  1
 Thermal Protection:  Auto
@ CFM Setting:   50   |  80   |  110
 Max Amps: 0.22  | 0.29 |  0.35
 CFM/Watt @ 0.4 SP:   4.7  |  4.8  |  4.9
Power Watts @ 0.4 SP:  10.7 | 16.5 | 22.6
RPM:  752  | 838  | 1017
Lighting Specifications
Lighting Type: N/A
Color Temperature: N/A
Operating Wattage: N/A
Light Output: N/A
Color Rendering Index: N/A
Construction Specifications
Housing Material: Steel
Duct Connection: 4" Oval
Drive Type: Direct Drive
Height: 3-1/2 In.
Mounting: Ceiling or Wall
Grille Specifications
Material: Plastic
Grille Measurements: 13" x 13"
Control Specifications
Controls: Purchase Separately
Switch Type: Dual SP or 3-Way
Dimmer Type: N/A
Occupancy Sensor: Wall Switch
Humidity Sensor: Wall Switch
Timer Switch: Wall Switch
Measurements
Unit HxWxD: 3-1/2 x 12 x 15 inches
Unit Weight: 9 lbs.
 Package Dimensions: 8 x 17 x 14.5 inches
Electrical Specifications
Voltage: 120V 60Hz
Warranty
Warranty Unit: 3-Year
Ratings and Standards
 ETL: Certified
ETL Over Bath/Shower: Yes
ETL Listed Ceiling: Yes with GFCI Protected circuit
cULus: Yes
AMICA Certified: Yes - Certification Pending
 HVI 2100 Certified: Yes
ENERGY STAR for Homes:  Yes
 ASHRAE 62.2: 50 CFM min. for Bathroom
 LEED:
 CalGreen: With Humidity Wall Switch
 EPA Indoor airPLUS:
 California Title 24:
WA State Resi. Ventilation:
 Indoor Air Quality Code:
