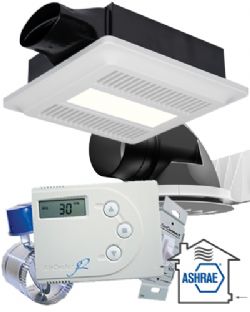

WHOLE HOUSE HYBRID/BALANCED VENTILATION - MADE SIMPLE VALUE PACKAGE PLUS A High-Performance, Ventilation Fan w/ Light, 50-110 CFM, Constant CFM, EC Motor with g2k-06 Hybrid/Balanced Whole House Ventilation System, 6 Inch Duct and Pre-soffit Fitting
Catalog #: IAQ-VMS4004
50-110 CFM High-Performance Greenheck MULTISpec Ventilation Fan w/ Light, Constant CFM Adaptive Technology, CFM Speed Selector, Virtually Silent EC Motor, 3-1/2 Inch Housing Depth, 115V coupled with an AirCycler g2k-06 Hybrid/Balanced Whole House Ventilation System, 6 Inch Duct size and BFS LTS141 Pre-Soffit Vent Termination
A Hybrid/Balanced Whole House Ventilation Solution
Good in Zones 3, 4 & 5 Better when used with Tempguard Sensors
Package Includes:
1 - Greenheck Fan SP-LP0511
1 - AirCycler Hybrid/Balanced Whole House Ventilation System AC-G2K-06
1 - BathFan Solutions High Airflow Pre-Soffit Termination
LTS141
Meet Code - Eliminate Callbacks - Exceed Customers Expectations
| Package Description |
The Whole House Hybrid/Balanced Ventilation - Made Simple Value Package A High-Performance Greenheck SP-LP0511L Ventilation Fan w/ Light controlled by an AirCycler g2-k Whole House Mechanical Ventilation System includes the AirCycler g2 Furnace Fan Timer, Fan Connect Bath/Fan Light Switch with remote fan control, and a 6" motorized fresh air damper. This system provides balanced and hybrid whole house supply-exhaust ventilation.
By running the ventilation system at the same time as the home's regular heating and cooling cycles, the Air Cycler g2-k System saves on additional utility costs.
Should regular heating and cooling cycles not run long enough to meet the desired or required ventilation, the AirCycler g2 can turn on smaller and more economical Greenheck SP-LP0511 exhaust fan through the optional FanConnect Switch. With no need to run the large central fan to provide additional ventilation, homeowner complaints of cold air or noisy operation are eliminated and efficiency is drastically improved. Balanced ventilation can be achieved by energizing the exhaust fan anytime the motorized damper is opened.
|
| Best Applications |
|
|
Whole House Ventilation in climates that rarely ever get above 90 degrees F or under 30 degrees F |
|
| Features & Benefits |
|
- Balanced or hybrid whole house supply-exhaust ventilation solution
- Lowest HERS score for whole house ventilation
- Helps meet ASHRAE 62.2 ventilation standard
- Patented algorithm offers precise ventilation control
- No on going maintenance required
- Features programmable hours of operation
- Controls SP-LP0511 exhaust fan connected to FanConnect controller
|
| Cons |
| Without using either a Hot or Cold Tempguard temperature sensor you run a greater risk of energy loss and additional humidity entering your home in temperatures above 90 degrees F and below 30 degrees F. Your best option is to use a Premium Package for your particular climate zone. |
