WHOLE HOUSE HYBRID/BALANCED VENTILATION - MADE SIMPLE PREMIUM COLD PACKAGE HP Ventilation Fan w/ Light, 50-110 CFM, Constant CFM, EC Motor with Hybrid/Balanced Whole House Ventilation System, Cold Temperature Sensor, 6 Inch Duct and Pre-Soffit Fitting
Catalog #: IAQ-VMS4006
50-110 CFM High-Performance Greenheck MULTISpec Ventilation Fan w/Light, Constant CFM Adaptive Technology, CFM Speed Selector, Virtually Silent EC Motor, 3-1/2 Inch Housing Depth, 115V coupled with an AirCycler g2k-06 Hybrid/Balanced Whole House Ventilation System, Cold Temp Sensor, 6 Inch Duct size and BFS LTS141 Pre-Soffit Vent Termination
A Hybrid/Balanced Whole House Ventilation Solution
Excellent for Zones 4B, 4C, 5 & 6 Good for Zones 4A & 7

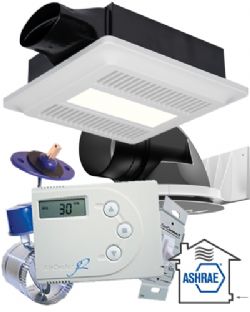

Package Includes:
1 - Greenheck High-Performance Ventilation Fan
SP-LP0511L1 - AirCycler Hybrid/Balanced Whole House Ventilation System
AC-G2K-061 - AirCycler TempGuard Cold Temperature Sensor
ACTG-C021 - BathFan Solutions High Flow Pre-Soffit Termination Fitting
LTS141
Meet Code - Eliminate Callbacks - Exceed Customers Expectations
| Package Description |
| The Whole House Hybrid/Balanced Ventilation - Made Simple Premium Cold Package A High-Performance Greenheck SP-LP0511L Ventilation Fan w/ Light controlled by the AirCycler g2-k Whole House Mechanical Ventilation System which includes the AirCycler g2 Furnace Fan Timer, Fan Connect Bath/Fan Light Switch with remote fan control, and a 6" motorized fresh air damper with a Tempguard ACTG-C02 cold temperature sensor. This system provides balanced and hybrid whole house supply-exhaust ventilation for homes in cool and cold climate zones.
By running the whole house hybrid/balanced ventilation system at the same time as the home's regular heating and cooling cycles, the Air Cycler g2-k System saves on additional utility costs.
Should regular heating and cooling cycles not run long enough to meet the desired or required ventilation, the AirCycler g2 can turn on the smaller and more economical Greenheck SP-LP0511 exhaust fan through the optional FanConnect Switch. With no need to run the large central fan to provide additional ventilation, homeowner complaints of cold air or noisy operation are eliminated and efficiency is drastically improved. Balanced ventilation can be achieved by energizing the Greenheck exhaust ventilation fan anytime the motorized damper is opened.
|
| Best Applications |
|
|
Whole House Ventilation in climates that are Cool or Cold that rarely go over 90 Degrees F but often have temperatures drop below 30 degrees. Where home owner is looking for an excellent and economical fresh air system with low maintenance and low energy cost but not as concerned with loss of heated indoor air. Recommend using a Merv 8 or better filter in forced air HVAC system. |
|
| Features & Benefits |
|
- Balanced or hybrid whole house supply-exhaust ventilation solution
- Controls SP-LP0511L exhaust fan w/light connected to FanConnect controller
- Vitually Silent EC Motor ventilation fan with 3 high speeds (50-80-110CFM)
- Constant CFM technology with Multi-Speed setting
- No on going maintenance required
- Lowest HERS score for whole house ventilation
- Helps meet ASHRAE 62.2 ventilation standard
- Patented algorithm offers precise ventilation control
- Features programmable hours of operation
|
| Cons: |
| Dependent on home HVAC system utilizing a Merv 8 or better filter and home owner changing every 3 months, to maintain filtered supply air. |
